Range Hood Cabinet Dimensions: Plan the Right Fit for Your Kitchen

Range hood cabinet dimensions affect how your kitchen looks, works, and vents. If the fit is off, you may lose storage, crowd the cooktop, or block proper airflow. That is why planning the hood area early matters.

Whether you are updating one wall or planning a full kitchen remodeling project, you need clear measurements before you order kitchen cabinets. You also need to know if your hood is ducted or ductless, what style you want, and how much space the maker requires around it.

This guide explains how to measure the cabinet area around a range hood, what clearances to review, and which cabinet choices may suit your layout. It also covers common planning errors and simple ways to avoid them.

Start with the range hood type

Before you measure cabinets, confirm the hood type. This choice affects width, height, depth, and the space above the cooktop.

Ducted range hoods

A ducted hood vents air outside the home. It often gives stronger odor and smoke control, but it needs room for ductwork. The duct path may run through the wall, ceiling, or an upper cabinet area.

If you choose a ducted model, review the hood width, duct size, chimney cover size, and the maker's clearance rules. You also need to check if framing, soffits, or ceiling height will limit placement.

Ductless range hoods

A ductless hood filters air and sends it back into the room. It does not need an exterior vent path, so cabinet planning may feel simpler. Even so, you still need the right hood width, safe spacing above the range, and enough room for filters and service access.

Ductless models can work well in kitchens where outside venting is hard. Still, always verify the maker's install guide, since size and clearance rules vary.

Measure the opening before you shop for cabinets

The easiest way to avoid cabinet fit issues is to measure the hood zone first. Do not start with cabinet guesses. Start with the actual space and the hood specs.

Take these basic measurements:

• Cooktop or range width
• Distance from cooktop to ceiling
• Wall width between tall cabinets or side walls
• Depth of nearby upper cabinets
• Centerline of the range on the wall
• Location of duct, wiring, and any vent cap

Write each number down. Then compare it to the range hood manual and your cabinet plan.

In many kitchens, the hood is the same width as the range, such as 30 inches or 36 inches. In some cases, homeowners choose a wider hood for better capture area. That can change the spacing for wall cabinets on both sides.

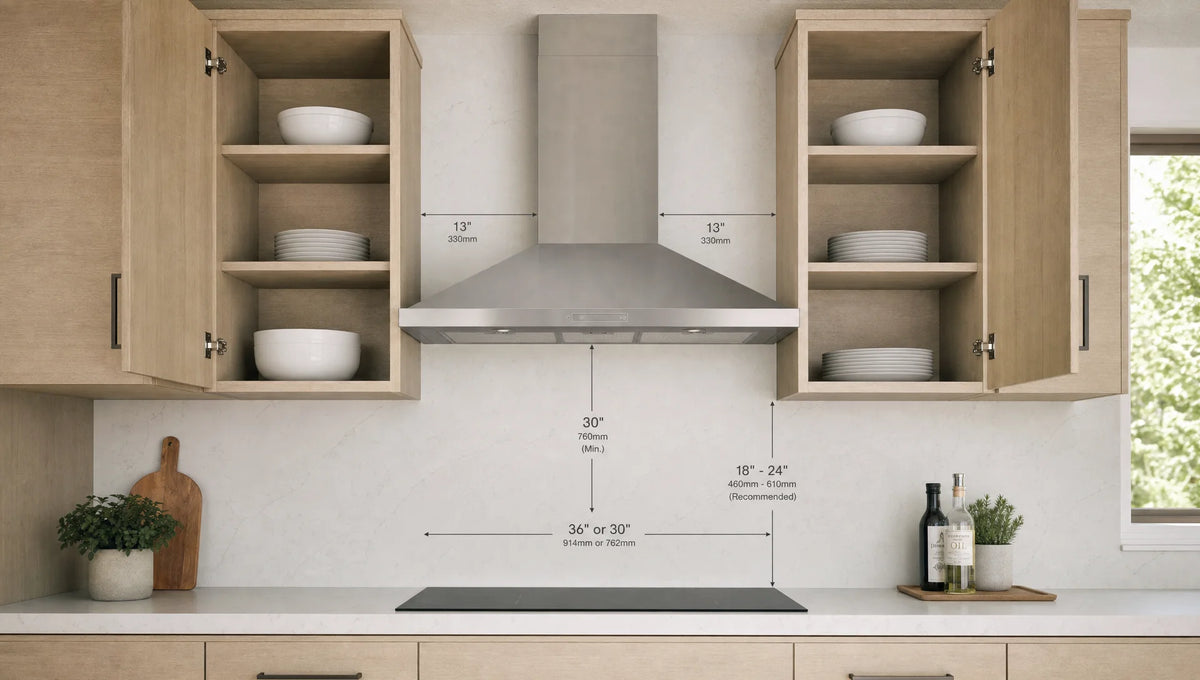

Plan the clearance above the cooking surface

Clearance is one of the most important parts of range hood cabinet dimensions. The hood must sit high enough for safety and proper use, but not so high that it loses function.

Many hood makers give a minimum and maximum install height above the cooktop. Gas and electric setups may differ. Local code may also affect the final placement. Because rules vary, always confirm the required clearance with the hood maker and a licensed installer when needed.

Do not assume one height fits every project. A few inches can change cabinet size above the hood, chimney length, and how balanced the wall looks.

Understand how hood style changes cabinet planning

The hood style often decides what type of cabinet can go around it.

Under-cabinet hoods

These mount below an upper cabinet. This style can save visual space and keep a common cabinet run. You need to match the cabinet width to the hood and allow for the hood body under the cabinet.

Some under-cabinet setups reduce storage inside that cabinet, especially if ductwork passes through it.

Wall-mount chimney hoods

These install on the wall with no cabinet directly over the hood body. Side cabinets may still frame the area. This style often creates a more open look, but it needs enough clear wall space and proper room for the chimney section.

Insert hoods in wood hood surrounds

An insert sits inside a custom hood shell or decorative surround. This look is common in traditional and shaker kitchens. The outer shell may match nearby cabinet door styles, but the inside opening still has to fit the insert exactly.

If you want the hood area to match your cabinetry, reviewing cabinet door samples can help you compare finish and style before you finalize the design.

Microwave hood combos

These save space, but they follow their own size and clearance rules. They may not suit every cooking style. Be careful not to treat them like a standard vent hood in your cabinet plan.

Choose cabinet dimensions around the hood

Once the hood type is set, you can plan the cabinets around it. Focus on three things: width, height, and depth.

Width

The cabinet layout should center on the range. If the hood is 30 inches wide, the cabinet opening or the space between side cabinets must support that width. If the hood is wider than the range, side cabinet widths may need to shrink.

Use balanced cabinet sizes when possible. A centered hood with even spacing often looks cleaner than mixed widths.

Height

Upper cabinet height depends on the hood clearance and the ceiling height. If you use cabinets beside a chimney hood, make sure they do not sit too low. If you use an upper cabinet above an under-cabinet hood, check the cabinet box height against the install guide.

For kitchens with tall ceilings, you may also need filler panels, stacked cabinets, or a chimney extension listed by the hood maker.

Depth

Depth matters more than many homeowners expect. Standard upper cabinets may project farther than some hood bodies, while other hoods extend beyond the cabinet face by design. Make sure door swing, trim, and hood depth work together.

If the hood is too shallow, it may not capture steam well. If nearby cabinets are too deep, they can make the cooking area feel tight.

Think about duct paths before ordering

Ducted hoods need a clear route to the outside. That route can affect cabinet choices.

For example, a duct may pass:

• Up through a cabinet and the ceiling
• Back through the wall
• Into a chase or soffit

Each option can reduce usable cabinet storage. It may also affect where shelves can go. If you are ordering ready-to-assemble cabinets or assembled kitchen cabinets, review how the duct path will interact with the cabinet box before purchase.

During kitchen design planning, many homeowners like to compare finished looks such as White Shaker RTA kitchen cabinets or White Shaker assembled kitchen cabinets when building out a hood wall.

Common mistakes that cause fit problems

Many range hood issues start on paper, not during install. Watch for these common errors.

• Ordering cabinets before choosing the hood
• Ignoring the maker's minimum and maximum clearances
• Forgetting about duct size and elbow space
• Measuring from an unlevel floor without checking final install height
• Not centering the hood on the cooktop
• Using cabinet depths that crowd the cooking space
• Assuming all 30-inch or 36-inch hoods install the same way

Another common issue is overlooking trim and crown details. Decorative parts can affect how close cabinets sit to the hood chimney or surround.

Cabinet options to consider for the hood wall

The best cabinet setup depends on your layout, storage needs, and hood style.

You may want:

• Two wall cabinets flanking a chimney hood
• An upper cabinet above an under-cabinet hood
• A decorative hood surround with an insert
• Tall pantry cabinets near the range wall, if space allows
• Matching shaker cabinets for a simple, balanced look

If you are still narrowing down style, color, or finish, collections like Natural Shaker RTA cabinets can help you picture how a warm wood tone may frame a hood area. For support with the full layout, the kitchen design planning page is a useful starting point.

Keep in mind that a hood wall should not be planned in isolation. Nearby base cabinets, fillers, crown, and backsplash lines all affect the final look.

Know when to bring in a pro

Basic measuring is often DIY friendly. Still, some parts of hood planning need expert review. That is especially true if you are moving electrical lines, adding new ductwork, changing wall structure, or working around code limits.

A licensed contractor or installer can help confirm rough opening sizes, vent path limits, and safe clearances. You should also review the hood maker's latest instructions before final cabinet installation.

Get the fit right before cabinets are installed

Range hood cabinet dimensions shape both function and style. The right plan starts with the hood type, exact measurements, proper clearances, and a cabinet layout that supports the vent system.

If you are comparing kitchen cabinets for a new hood wall, keep the full picture in mind: width, depth, storage, duct path, and finish. A careful plan now can help you avoid rework later.

As you map out your kitchen remodeling project, explore cabinet styles that fit your hood layout, confirm all measurements with the manufacturer, and consult a qualified installer when needed.
